Radial Arm Saw Machine
URAS 400S/400A
URAS 450S/450A
URAS 350S/350A
-

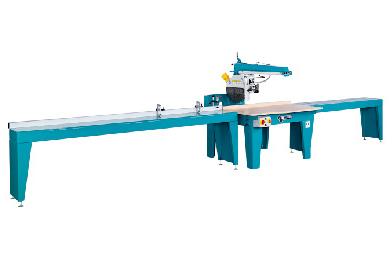

With optional 2m roller track table, 3m fence and 3m plain table.
(※ Picture for reference only. Actual product may vary.)

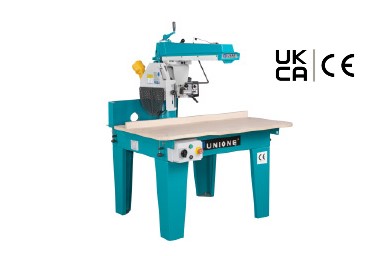

URAS 400S/400A
(※ Picture for reference only. Actual product may vary.)
URAS 450S/450A
(※ Picture for reference only. Actual product may vary.)
| Model (standard arm/longer arm) | URAS 350S/350A | |
| Maximum diameter of saw | 350mm | |
| Maximum saw projection | 108mm | |
| Crosscut capacity 90˚ | 340x 108mm | |
| Crosscut capacity 45˚ | 290x 108mm | |
| Height of work table | 813mm | |
| Motor power | 3 Phase | 4.5Kw (6Hp) |
| 1 Phase | 3.0Kw (4Hp) | |
| Speed of spindle | 50 Hz | 2850 RPM |
| 60 Hz | 3450 RPM | |
| Saw spindle diameter | 30mm | |
| Dust outlet diameter | 2x100mm | |
| Extraction requirements | 800cfm | |
| Floor space | Standard arm (S) | 1170x 1600mm |
| Longer arm (A) | 1370x 2050mm | |
| Max ripping capacity | Standard arm | 610mm |
| Longer arm | 760mm | |
| Size of MDF table | Standard arm | L820x W1220mm |
| Longer arm | L970x W1440mm | |
| Overall machine height | 1790mm | |
| Net weight (Kg) | 255/277 | |
| Model (standard arm/longer arm) | URAS 400S/400A | URAS 450S/450A | |
| Maximum diameter of saw | 400mm | 450mm | |
| Maximum saw projection | 133mm | 155mm | |
| Crosscut capacity 90˚ | 340x 133mm | 330x 155mm | |
| Crosscut capacity 45˚ | 290x 133mm | 290x 155mm | |
| Height of work table | 813mm | 813mm | |
| Motor power | 3 Phase | 4.5Kw (6Hp) | 4.5Kw (6Hp) |
| 1 Phase | 3.0Kw (4Hp) | 3.0Kw (4Hp) | |
| Speed of spindle | 50 Hz | 2850 RPM | 2850 RPM |
| 60 Hz | 3450 RPM | 3450 RPM | |
| Saw spindle diameter | 30mm | 30mm | |
| Dust outlet diameter | 2x100mm | 2x100mm | |
| Extraction requirements | 800cfm | 800cfm | |
| Floor space | Standard arm (S) | 1170x 1600mm | 1170x 1600mm |
| Longer arm (A) | 1370x 2050mm | 1370x 2050mm | |
| Max ripping capacity | Standard arm | 610mm | 610mm |
| Longer arm | 760mm | 760mm | |
| Size of MDF table | Standard arm | L820x W1220mm | L820x W1220mm |
| Longer arm | L970x W1440mm | L970x W1440mm | |
| Overall machine height | 1790mm | 1790mm | |
| Net weight (Kg) | 258/280 | 261/283 | |
※ Picture for reference only. Actual product may vary.
※ S = Standard Arm, A = Longer Arm.
※ S = Standard Arm, A = Longer Arm.
